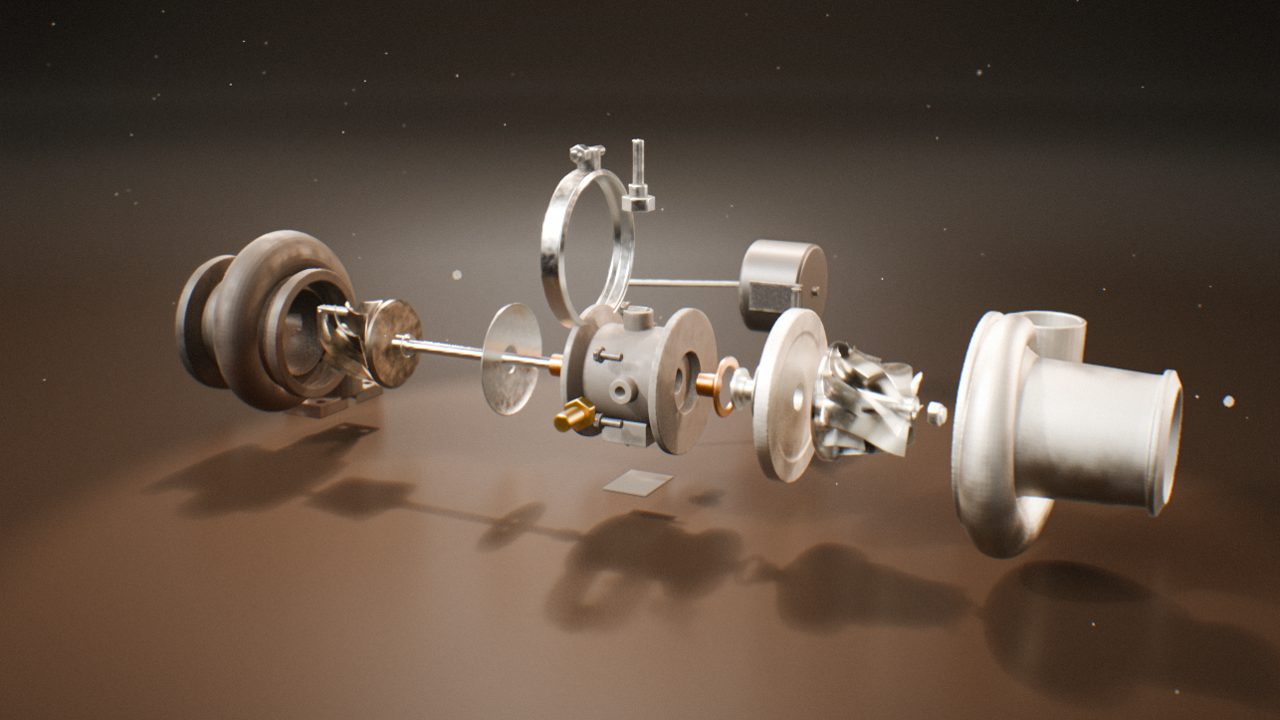

The turbocharger's parts laid out along its shaft

One shaft, two wheels

Scroll. The turbo comes apart in the order you would take it apart on a bench.

Fasteners first

Nuts, studs, the drain flange, the coolant fittings and the clamp come off before anything big moves.

Housings off

The hot housing slides off one end, the cold housing off the other. The wheels stay on the shaft.

43 parts

Compressor wheel, backplate, thrust parts, bearings, then the shaft with the turbine wheel welded to it. Drag to turn.

And back together

The same model this page loads is the one the film was rendered from.

ConceptView in your room

Put it on your desk

On a phone, tap the button in the corner to place it in your room at real size. On a computer, drag to turn it.

AR placement has not been tested on a real phone yet. Model: 43 parts, about 145,000 polygons, 3.9 MB (the scroll version above is the same mesh, Draco-compressed to 0.54 MB).
